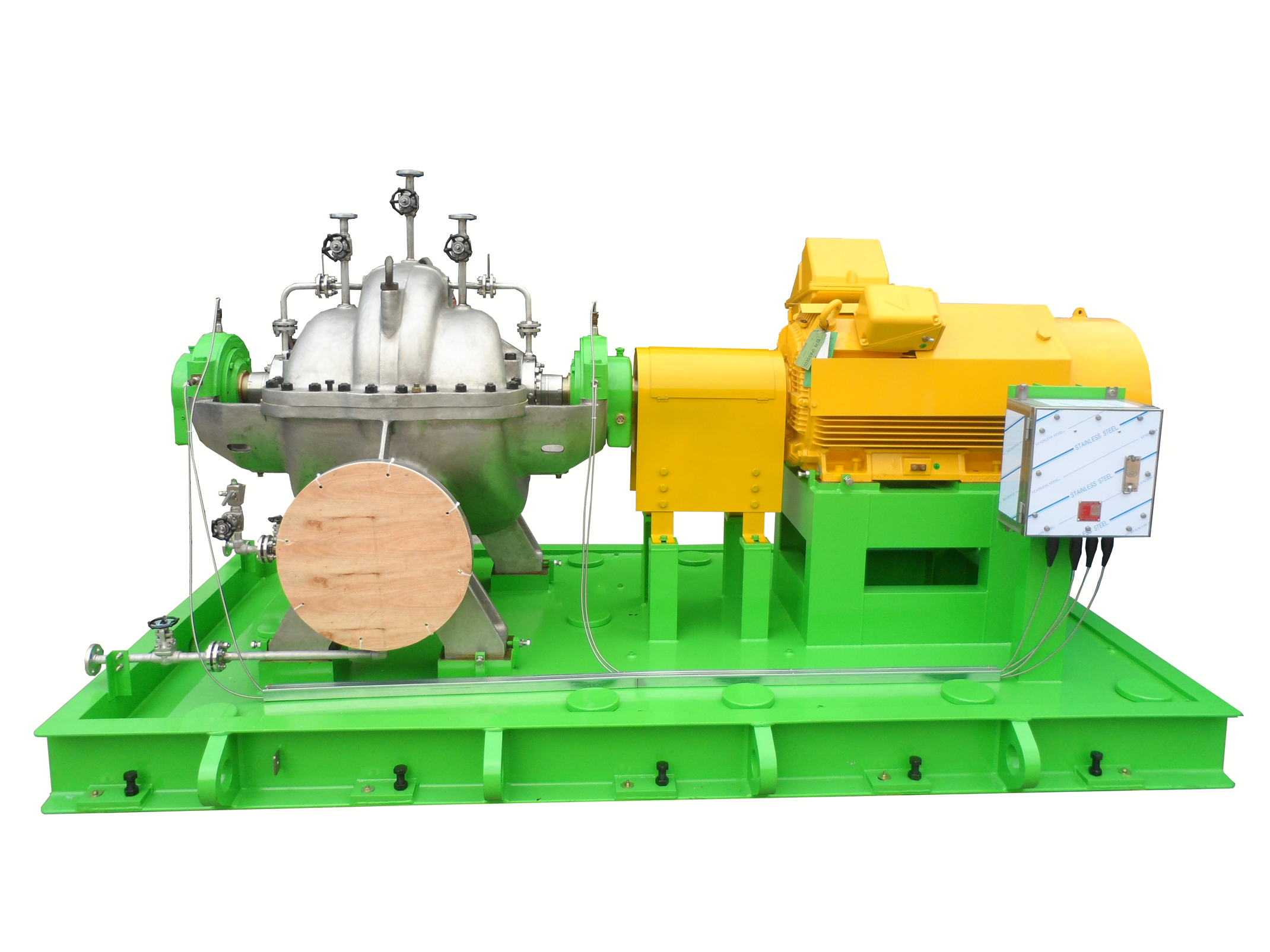

YOUNG POONG API BB1 Pump

Standard
ㆍAPI 610

Operating Parameters
ㆍFlows to 20,000㎥/hr

ㆍHeads to 300m

ㆍTemperatures : 150℃

Features
ㆍAxially split casing with composition sheet gasket

ㆍEye bolt for lifting only top half of the casing

ㆍDouble suction enclosed type with large eye area

ㆍLow NPSH requirement and reduce the possibility of cavitation

ㆍDynamically balanced to ISO 1940

ㆍRenewable casing and impeller wear rings

ㆍLabyrinth type isolator is standard

ㆍOil bath, mist and grease are available

ㆍShort bearing span and heavy shaft design minimize deflection
